Universal 6 Way Power Unit w/Harness, Switch and Bracket

SKU: 1075 or 1076 Univ6waypower

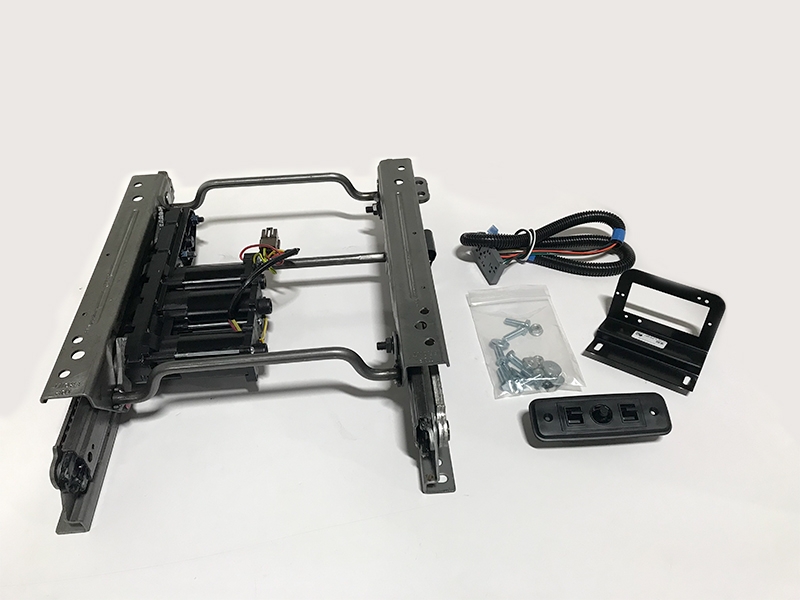

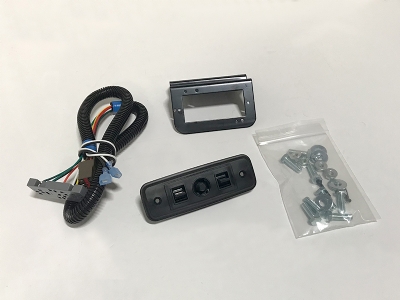

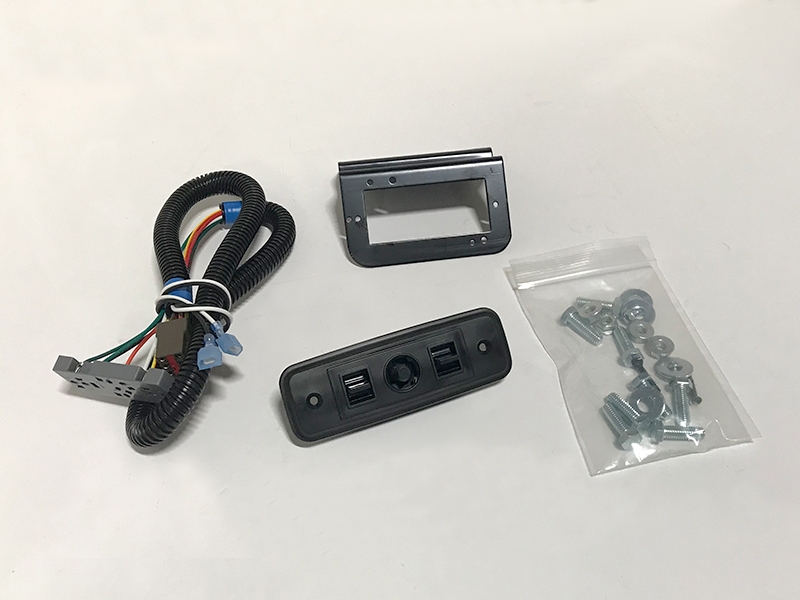

6 Way Power Units Include - Power Unit, Switch,

Switch Mounting Bracket, Wiring Assembly, 4 flat adapter bars and Bolts/Screws

(Specify Left or Right Side Sitting Switch Location)

Please See Below for More Important Details

Price: $450.00
Universal 6 Way Power Unit w/Harness, Switch and Bracket
Universal 6 Way Power Unit w/Harness, Switch and Bracket
Universal 6 Way Power Unit w/Harness, Switch and Bracket
Universal 6 Way Power Unit w/Harness, Switch and Bracket
Universal 6 Way Power Unit w/Harness, Switch and Bracket
Universal 6 Way Power Unit w/Harness, Switch and Bracket
Universal 6 Way Power Unit w/Harness, Switch and Bracket
Universal 6 Way Power Unit w/Harness, Switch and Bracket
Universal 6 Way Power Unit w/Harness, Switch and Bracket
Universal 6 Way Power Unit w/Harness, Switch and Bracket
Universal 6 Way Power Unit w/Harness, Switch and Bracket
Universal 6 Way Power Unit w/Harness, Switch and Bracket
Universal 6 Way Power Unit w/Harness, Switch and Bracket
Universal 6 Way Power Unit w/Harness, Switch and Bracket
Universal 6 Way Power Unit w/Harness, Switch and Bracket
Universal 6 Way Power Unit w/Harness, Switch and Bracket
(Click to see larger image and other views)
Product Details


When Adding power unit to an existing Non-Power Seat

You will need a new shorter pedestal 5"- 7" max height or seat will sit to high.

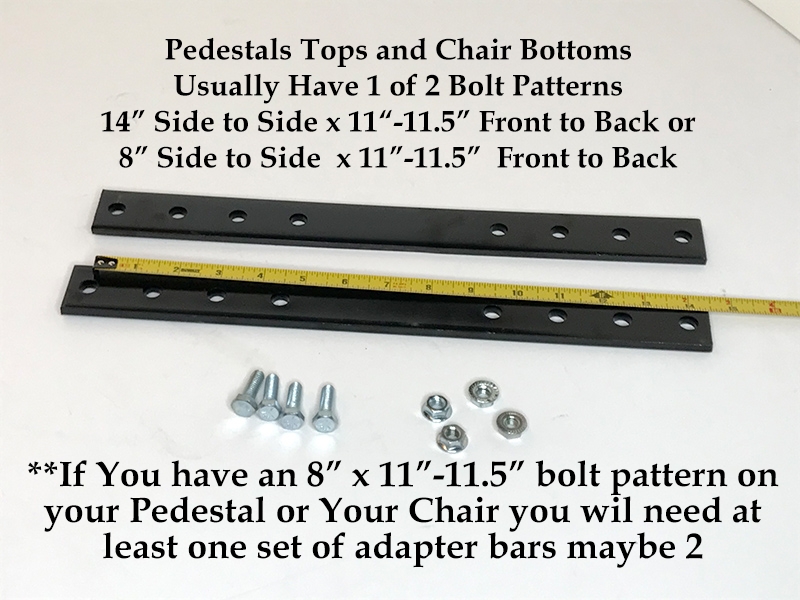

Includes 4 adapter bars with nuts and bolts

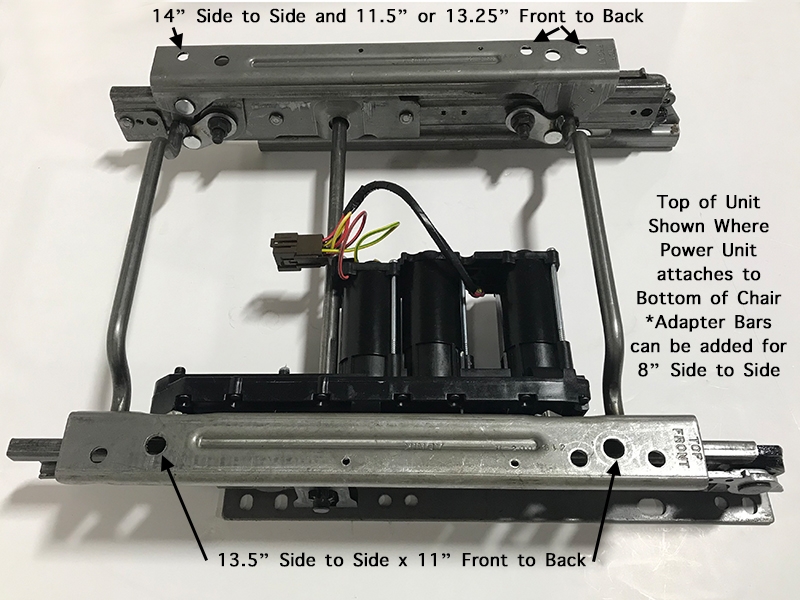

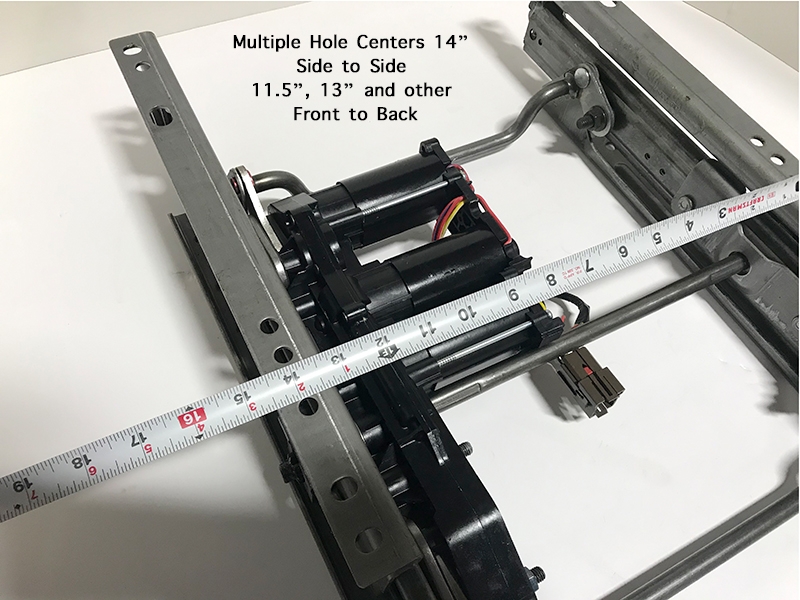

If your Captains chair frame has 8" x 11"-11.5" Holes on the bottom instead of 11" x 14" bolt pattern - you will need these

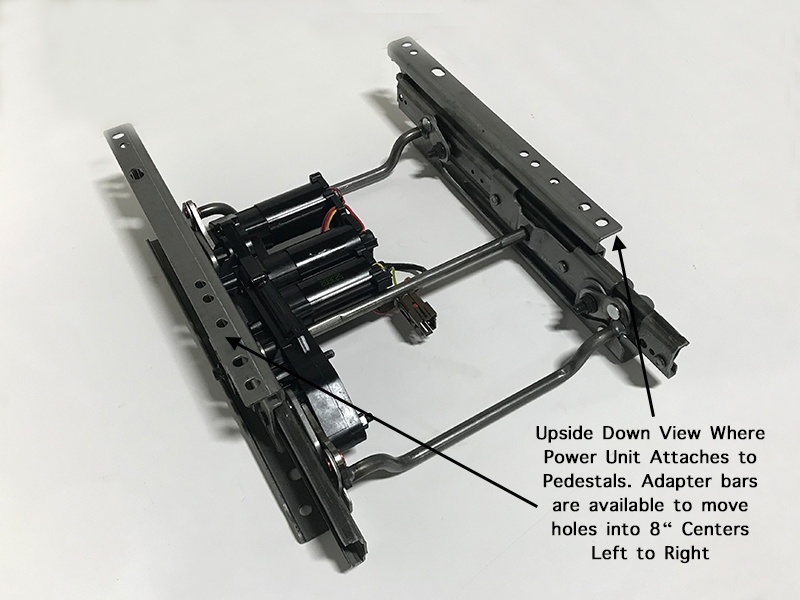

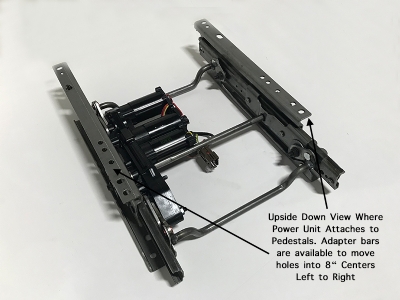

If your pedestal has 8" x 11"-11.5" holes on the top plate instead of 11" x 14" bolt pattern - you will need these


12 Volt Power Source Required If Installing on Existing Non-Power Seat - Pulls 17-18 amps

If you already have 6 Way Power you won't have to buy new units when ordering new seats

if existing power units are working.

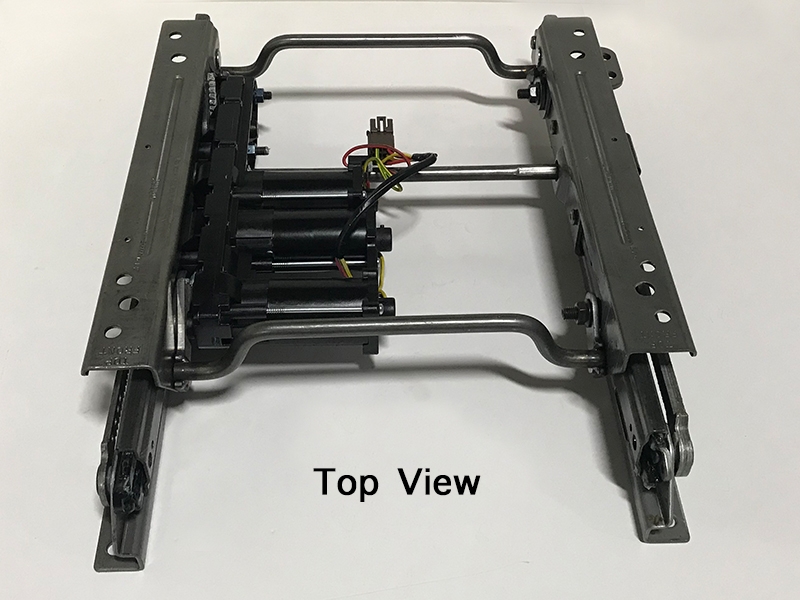

Power units are 3.75" thick in the down position, give you 2" of travel up and down and 11" of travel back and forth.


***Does Not work on Flexsteel Captains chairs with power footrest


For More Info Please Call us
