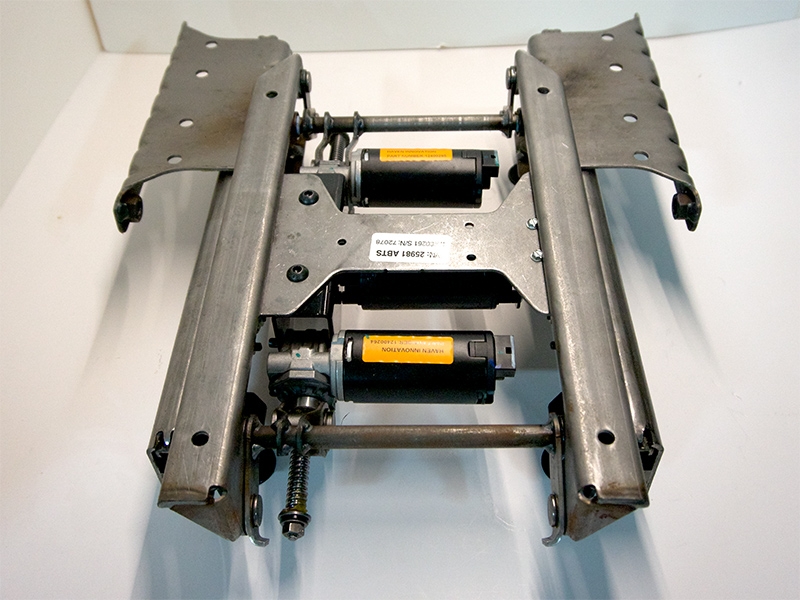

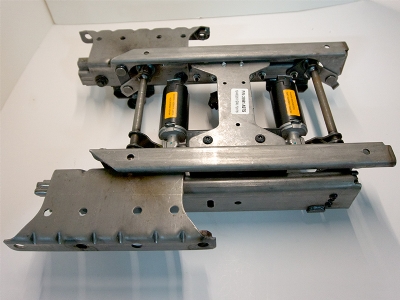

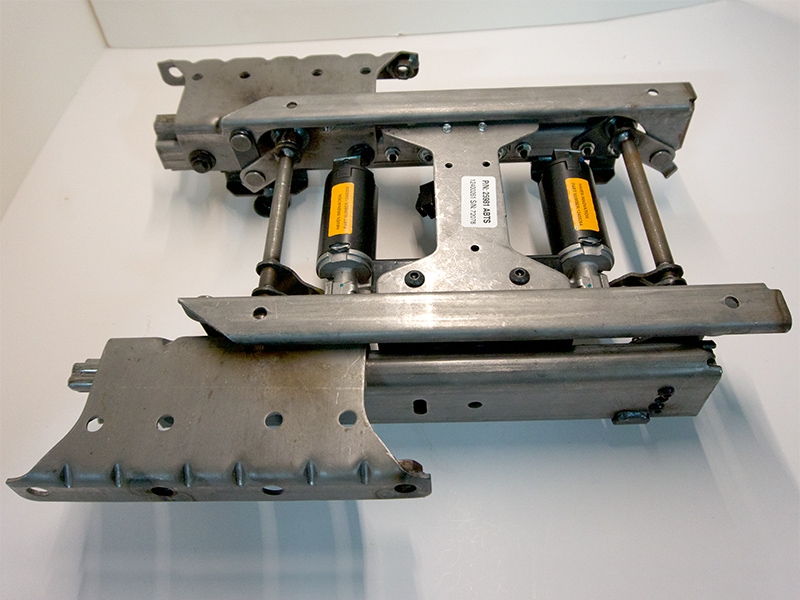

6 Way Power Unit Mechanism (Integrated Belt)

SKU: 6waypowermechitbelt

Please Call Limited Stock (we have 4 left) 6 Way Power Unit with Seat Belt Tabs for Flexsteel Integrated Captains Chairs
Mechanism Only
(works on Left or Right Side Sitting Switch Location)

Must Have 24194 Switch and either 25982 or 25983 Harness
(If you have a different harness or switch you will need to replace the whole unit, switch and harness

Very limited quantities left
Please Call or Email
1-800-445-1830
info@braddandhall.com
We're Here to Serve You!
6 Way Power Unit Mechanism (Integrated Belt)
6 Way Power Unit Mechanism (Integrated Belt)
6 Way Power Unit Mechanism (Integrated Belt)
6 Way Power Unit Mechanism (Integrated Belt)
6 Way Power Unit Mechanism (Integrated Belt)
6 Way Power Unit Mechanism (Integrated Belt)
(Click to see larger image and other views)
Product Details

For Repair Purposes
If you already have 6 Way Power and have a Working 6 way Switch (24194) and Working Harness (#25982 or 25983)
Then the power mechanism itself is all you need to fix your seat - Choose this Option


Bolt Patterns
Top Holes- 8" centers side to side 11.5" front to back on threaded studs
Bottom Studs - 8" centers side to side 11" front to back on threaded studs

Power units are 3.75" thick in the down position, give you 2" of travel up and down and 7" of travel back and forth

For More Info Please Call us
